Grundfos 6 inch Electric Stainless Steel Deep Well Pump SP 5A-60
Product Specifications
| Place of Origin | China |
| Brand Name | Water Clean Pump |
| Liquid temperature during operation | 20 °C |
| Liquid temperature range | -15 .. 40 °C |
| Liquids to be conveyed | Water |
| Maximum fluid temperature at 0.15 m/sec | 40 °C |
Product Details
Deep Well Pump
SP 5A-60
Serial Number: 5101960
Applicable for:
- Extraction of groundwater for domestic use
- Pressure boosting for domestic water supply
- Groundwater extraction
- Irrigation
- Water supply for residential communities and buildings
Stainless steel submersible pump. Materials include EN 1.4301 (AISI 304), EN 1.4401 (AISI 316), and EN 1.4539 (AISI 904L). Typical applications: groundwater extraction, irrigation, mining, fountains, offshore operations, etc.

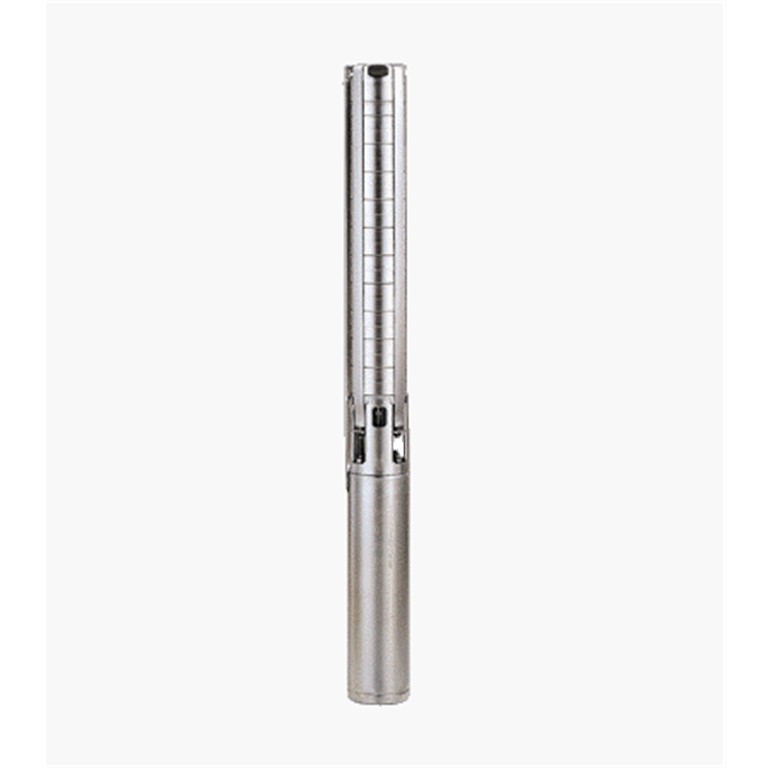

SP 5A-60
It is a submersible deep well pump, suitable for conveying clean water. It can be installed vertically or horizontally. All steel components are made of stainless steel, EN 1.4301 (AISI 304), ensuring high corrosion resistance. The pump has drinking water approval.
The pump is equipped with a 5.5kW MS6000 motor, featuring a sand shield, mechanical shaft seal, water-lubricated sliding bearings, and a volume compensation diaphragm. The motor is a hermetically sealed submersible motor, providing good mechanical stability and high efficiency. It is suitable for temperatures up to 40 °C.
The motor is equipped with a Grundfos Tempcon sensor, which enables temperature monitoring through power line carrier
Liquid:
Liquid conveyed: Water
Liquid temperature range: -15 .. 40 °C
Maximum fluid temperature at 0.15 m/sec: 40 °C
Liquid temperature during operation: 20 °C
Density: 998.2 kg/m³

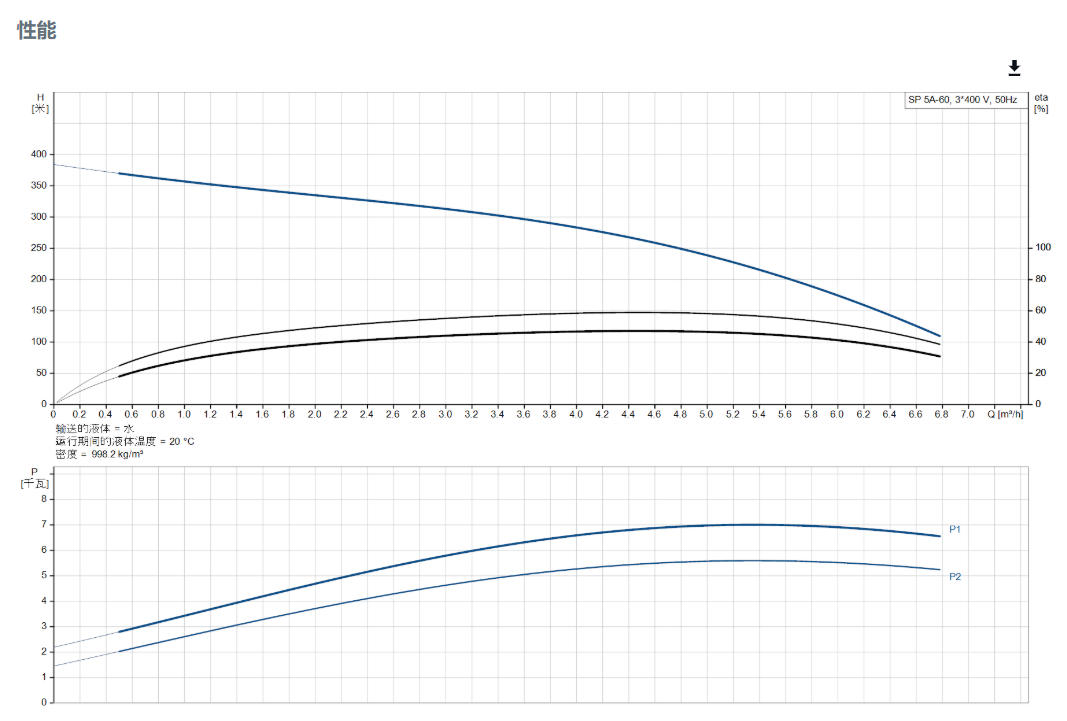

Technology:
Pump speed based on pump data: 2900 revolutions per minute
Rated flow: 5 m³/h
Rated head: 245 meters
Motor shaft seal: CER/CARNBR
Approvals: CE, EAC, UKCA, SEPRO, MOROCCO
Drinking water certification: ACS, DM174
Curve tolerance: ISO9906:2012 3B
Motor version: T40
Return valve: YES
Shaft end specification: CYLINDRICAL
Materials:
Pump: Stainless steel
EN 1.4301
AISI 304
Impeller: Stainless steel
EN 1.4301
AISI 304
Motor: Stainless steel
DIN W.-Nr. 1.4301
AISI 304
Installation:
Maximum ambient pressure: 60 bar
Maximum operating pressure: 60 bar
Maximum permissible outlet pressure: 39.3 bar
Interface type: Rp
Connection size: 1 1/2 inch
Motor diameter: 6 inch
Minimum borehole diameter: 145 mm

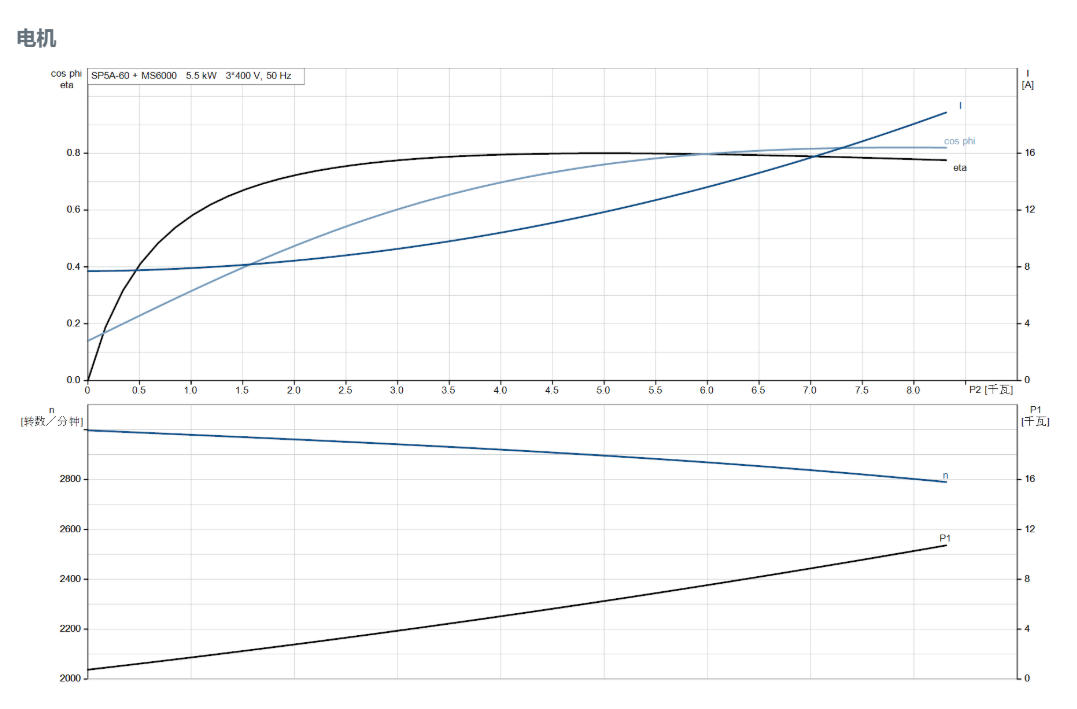

Electrical data:
Motor model: MS6000
Motor flange design: Grundfos
Rated power - P2: 5.5 kW
Power required by the pump (P2): 5.5 kW
Power frequency: 50 Hz
Rated voltage: 3 x 380-400-415 V
Rated current: 13.6-13.4-13.6 A
Starting current: 470-510-520 %
Cos phi - power factor: 0.82-0.78-0.75
Rated speed: 2870-2880-2890 revolutions per minute
Starting method: Direct start
Enclosure class (IEC 34-5): IP68
Insulation class (IEC 85): F
Built-in temperature conductor: Yes
Cable length: 5 meters
Cable type: FLAT
Motor number: 78195511
Winding: Enamelled
Others:
Minimum energy efficiency index, MEI ≥: 0.50
Net weight: 58.4 kg
Gross weight: 92.6 kg
Transport volume: 0.253 m³
communication and the MP204 control panel. The motor is designed for direct online (DOL) starting.
Product Applications
Packing & Delivery
| Packing Details | Standard Export Wooden Case / Carton with Waterproof Film |
| Port | Tianjin / Beijing, China |
| Lead Time | 3-15 Working Days (depending on quantity) |
Related Products
Grundfos Crn 255-6-2 High Pressure Water Pump Vertical Multistage Centrifugal Type
6 Inch Anti Sand Stainless Steel Submersible Borehole Deep Well Water Pump

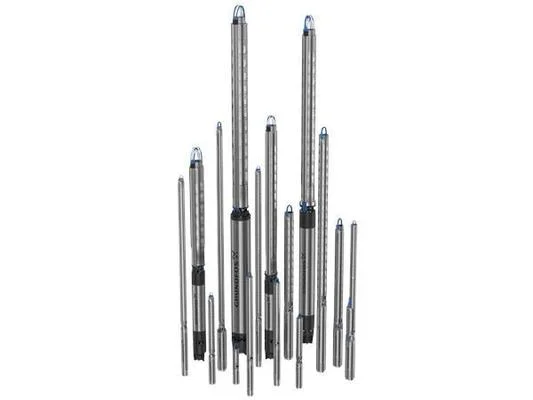

High Efficiency Grundfos SP Deep Well Pump For Efficient Water Supply
