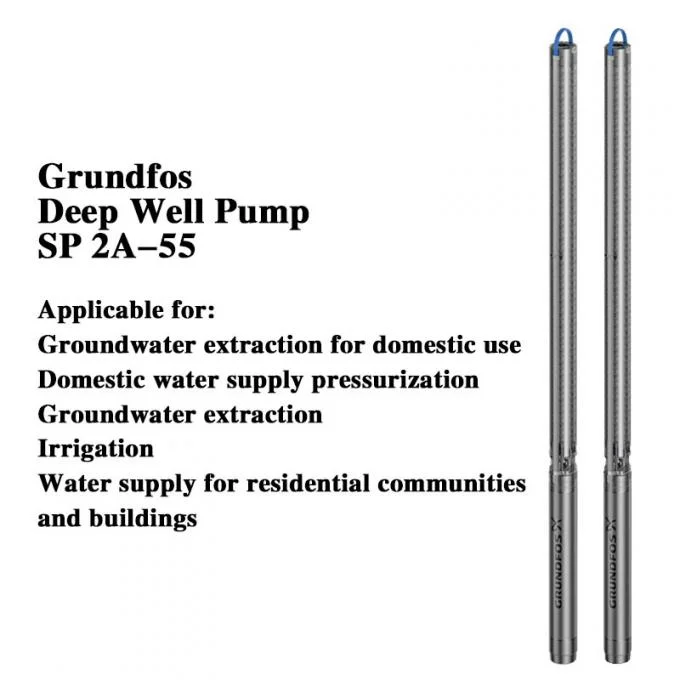

Submersible Deep Well Pump Stainless Steel Corrosion-resistant Installed Vertically Or Horizontally

Deep Well Pump
SP 2A-55
Serial Number: 9101955

Applicable for:

Stainless steel submersible pump. Materials include EN 1.4301 (AISI 304), EN 1.4401 (AISI 316), and EN 1.4539 (AISI 904L).

Typical applications: groundwater extraction, irrigation, mining, fountains, offshore operations, etc.

Liquid:
Liquid conveyed: Water
Liquid temperature range: -15 .. 40 °C
Liquid temperature during operation: 20 °C
Density: 998.2 kg/m³

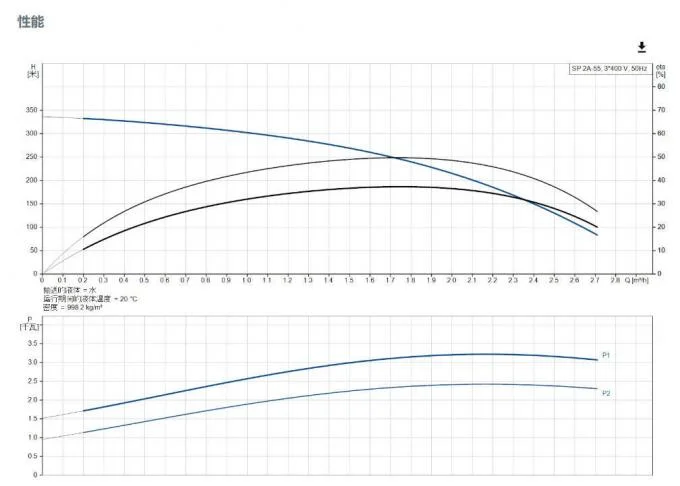

Technology:
Pump speed based on pump data: 2900 revolutions per minute
Rated flow: 2 m³/h
Rated head: 219 meters
Approvals: CE, EAC, UKCA, SEPRO, MOROCCO
Motor certifications: CE, EAC, C_UL_US_NSF372MOROCCO, UKCA, SEPRO, RCM
Drinking water certifications: ACS, DM174
Curve tolerance: ISO9906:2012 3B
Motor version: T40
Return valve: YES
Shaft end specification: CYLINDRICAL

Materials:
Pump: Stainless steel
EN 1.4301
AISI 304
Impeller: Stainless steel
EN 1.4301
AISI 304
Motor: Stainless steel
EN 1.4301
Shaft seal: HM/Ceramics

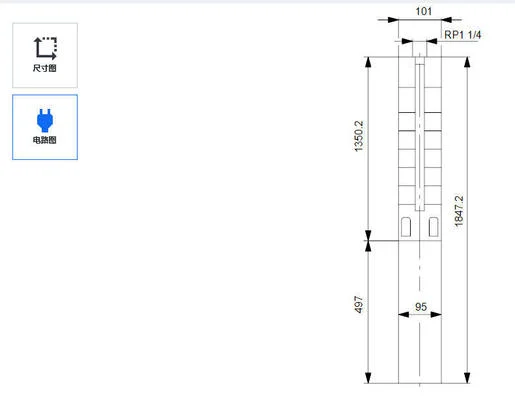

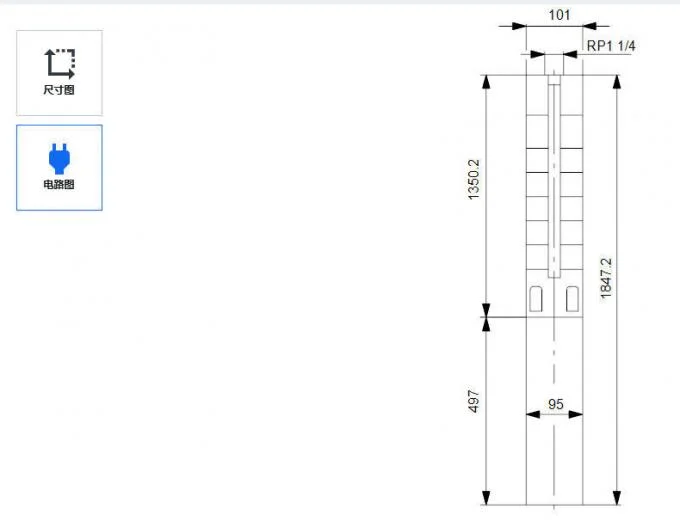

Installation:
Maximum ambient pressure: 60 bar
Maximum operating pressure: 60 bar
Maximum permissible outlet pressure: 34.2 bar
Interface type: Rp
Connection size: 1 1/4 inch
Motor diameter: 4 inch
Minimum borehole diameter: 105 mm

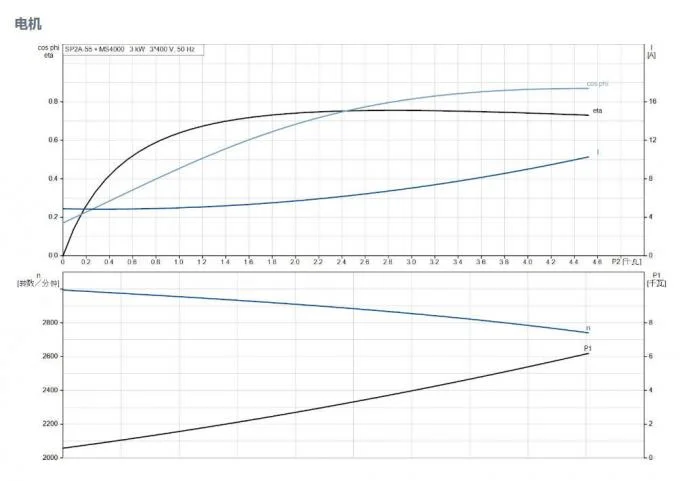

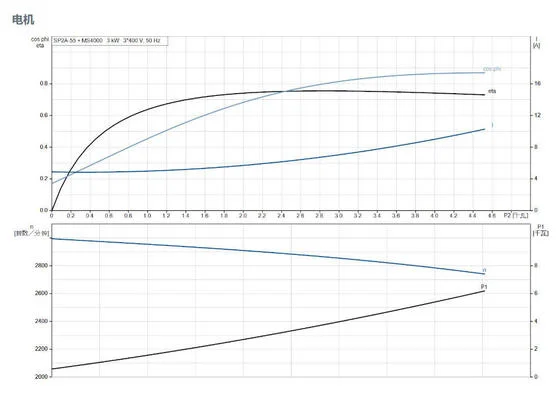

Electrical data:
Motor type: MS4000
Motor flange design: Grundfos
Rated power - P2: 3 kW
Power required by the pump (P2): 3 kW
Power frequency: 50 Hz
Rated voltage: 3 x 380-400-415 V
Rated current: 7.7-7.9-8.1 A
Starting current: 430-450-460 %
Cos phi - Power factor: 0.86-0.81-0.77
Rated speed: 2830-2850-2870 revolutions per minute

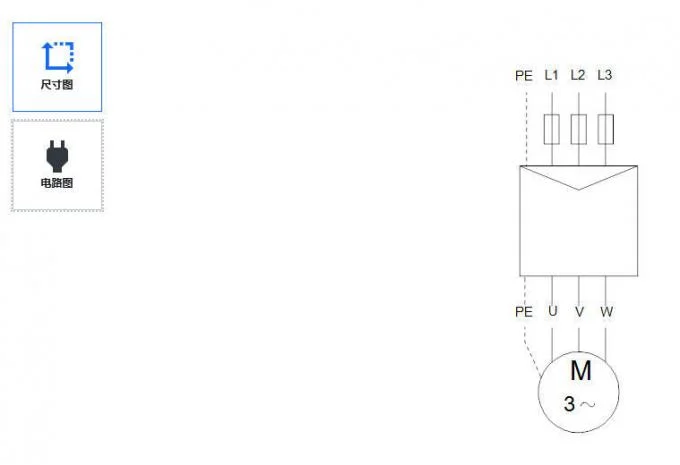

Starting method: Direct-on-line (DOL)
Enclosure class (IEC 34-5): IP68
Insulation class (IEC 85): F
Self-protection standard: NONE
Thermal protection: External
Built-in temperature conductor: No
Cable length: 2.5 meters
Cable type: FLAT
Motor number: 7C192508
Windings: Enameled

Others:
Minimum energy efficiency index, MEI ≥: 0.70
Net weight: 37.6 kg
Gross weight: 42.9 kg
Transport volume: 0.04 m³
Place of origin: SG
