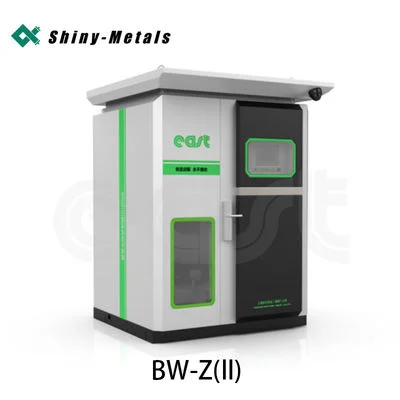

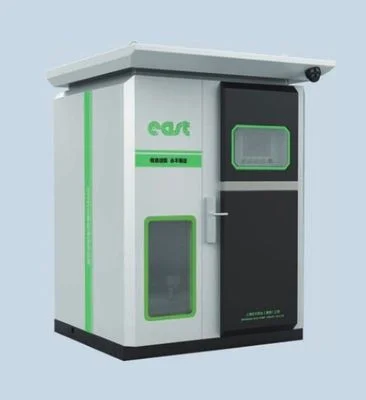

EAST Bw-Z (II) Direct Connected Water Supply Equipment
MOQ:1 Set
Price:Negotiable
Standard Packaging:Standard Export Plywood Case or Carton
Delivery Period:1-2 weeks
Payment Method:L/C, T/T, Western Union
Supply Capacity:1000 Sets per Month
Click to chat with us online
Product Specifications
| Place of Origin | China |
| Brand Name | Water Clean Pump |

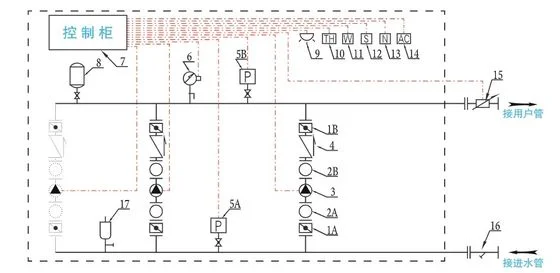

| 1 | Butterfly valve |
| 2 | Intelligent Control System |
| 3 | Pump Group System |
| 4 | HVAC System |
| 5 | Pressure transmitter |
| 6 | Sensing System (Optional) |
| 7 | Pipeline Measurement and Control System |
| 9 | Lighting lamp |
| 13 | Noise sensor (Optional) |
| Air pressure tank | Stabilizes the outlet pressure of the equipment, maintains pressure for small - flow, and avoids frequent start - stop of the equipment. |
| Complete set of valve group | SUS304 stainless - steel valve parts, corrosion - resistant, safe and hygienic. |
| Delivery Period: | 15--60 workdays |
Product Features
- <div style="color: var(--md-box-samantha-normal-text-color) !important; font-size: 14px; font-weight: 400; line-height: var(--md-box-samantha-normal-text-line-height);">BW - Z(II)
Product Applications
1
Pressure boosting for high-rise and multi-storey buildings2
Residential areas with insufficient pressure at the end of the water supply network3
Improving the quality and efficiency of rural drinking water4
Residential areas with old pumping stations undergoing renovation5
Residential areas without pumping stations6
Water supply in scenic areas7
Emergency temporary water supply8
Protection Assurance The enclosure is made of SUS304 material with a P - shaped rain - proof and sun - proof design (IP55). The exterior is designed with a service life of 50 years.9
The enclosure is made of SUS304 material with a P - shaped rain - proof and sun - proof design (IP55). The exterior is designed with a service life of 50 years.10
Safety and Hygiene The food - grade stainless - steel flow - through body operates in a fully - enclosed manner, completely eliminating secondary pollution.11
The food - grade stainless - steel flow - through body operates in a fully - enclosed manner, completely eliminating secondary pollution.12
Energy Conservation and Environmental Protection Using pressure - boosting technology with water - squeezing, full - variable control, it makes full use of the pressure in the municipal water supply network, is equipped with air - squeezing pressure, and reduces pressure for small - flow, thus lowering energy consumption.13
Using pressure - boosting technology with water - squeezing, full - variable control, it makes full use of the pressure in the municipal water supply network, is equipped with air - squeezing pressure, and reduces pressure for small - flow, thus lowering energy consumption.14
Convenient Operation One - button start and stop, with a transparent view of the working status. It is designed based on ergonomics, with a compact structure and an aesthetically pleasing exterior.15
One - button start and stop, with a transparent view of the working status. It is designed based on ergonomics, with a compact structure and an aesthetically pleasing exterior.16
Unattended Operation Automatic pump switching, balanced operation, automatic inspection, stop when there is no water, and automatic restart when power is restored.17
Automatic pump switching, balanced operation, automatic inspection, stop when there is no water, and automatic restart when power is restored.18
Intelligent Security Remote monitoring, temperature and humidity adjustment, water leakage detection, noise detection, and fault alarm.19
Remote monitoring, temperature and humidity adjustment, water leakage detection, noise detection, and fault alarm.20
Quick Installation Modular detachable structure, pre - fabricated in the factory and delivered as a whole. Just connect the inlet and outlet water pipes and power on to operate.21
Modular detachable structure, pre - fabricated in the factory and delivered as a whole. Just connect the inlet and outlet water pipes and power on to operate.22
Noise Reduction Three - layer noise reduction with sound - absorbing panels, integral sound - absorbing covers, and stainless - steel exteriors, which is 10dB or more lower than conventional products.23
Three - layer noise reduction with sound - absorbing panels, integral sound - absorbing covers, and stainless - steel exteriors, which is 10dB or more lower than conventional products.24
Reliable Service The company has 16 subsidiaries, 26 branch offices, over 200 business offices, and provides 7×24 - hour after - sales service. The one - time commissioning qualification rate is ≥98%.25
The company has 16 subsidiaries, 26 branch offices, over 200 business offices, and provides 7×24 - hour after - sales service. The one - time commissioning qualification rate is ≥98%.26

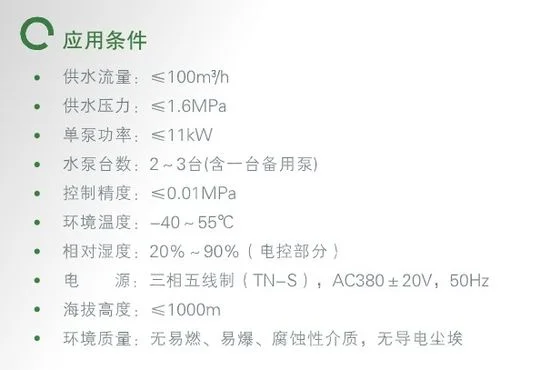

Water supply flow rate: ≤ 100 cubic meters per hour27
Water supply pressure: ≤ 1.6 megapascals28
Single - pump power: ≤ 11 kilowatts29
Number of water pumps: 2 to 3 units (including one standby pump)30
Control accuracy: ≤ 0.01 megapascals31
Ambient temperature: - 40ºC to 55ºC32
Relative humidity: 20% to 90% (for the electrical control part)33
Power supply: Three - phase five - wire system (TN - S), AC380V ± 20V, 50Hz34
Altitude: ≤ 1000 meters35
Environmental quality: Free of flammable, explosive, corrosive substances, and conductive dust36
Component Configuration: A.A: Imported components. : Number of frequency converters. B.B: Domestic components. : Number of frequency converters.37
A.A: Imported components. : Number of frequency converters.38
B.B: Domestic components. : Number of frequency converters.39
Other Option Requirements: No mark: Standard configuration with no additional requirements. D: Electric heating. K: Industrial air - conditioning.40
No mark: Standard configuration with no additional requirements.41
D: Electric heating.42
K: Industrial air - conditioning.43
Pump Series: No mark: DFCL series. T: Other pump types.44
No mark: DFCL series.45
T: Other pump types.46
Number of Water Pumps: 2 - 3 (including 1 standby pump).47

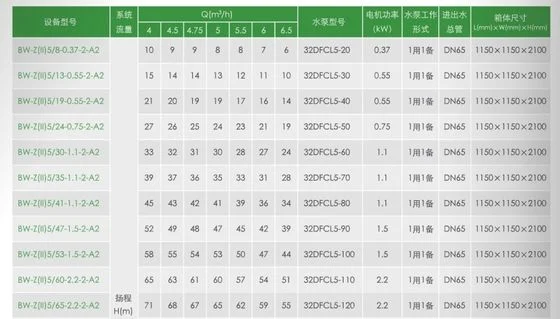

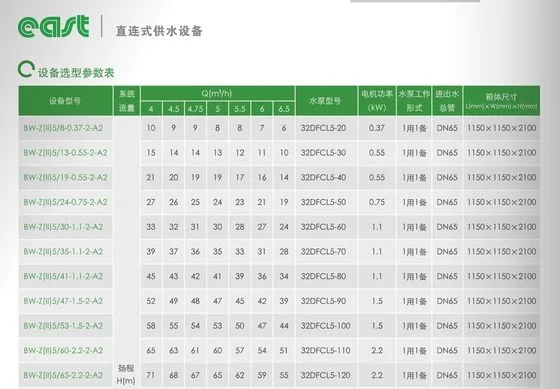

Single - pump Power (kW):48
Equipment Head (m):49
Equipment Flow Rate (m³/h):50
Direct - connected type:51
Pipe network superposition (non - negative pressure) water supply equipment:Packing & Delivery
